Parts produced with RTM process

Examples of varios RTM parts with short explanations their respective technical characteristics

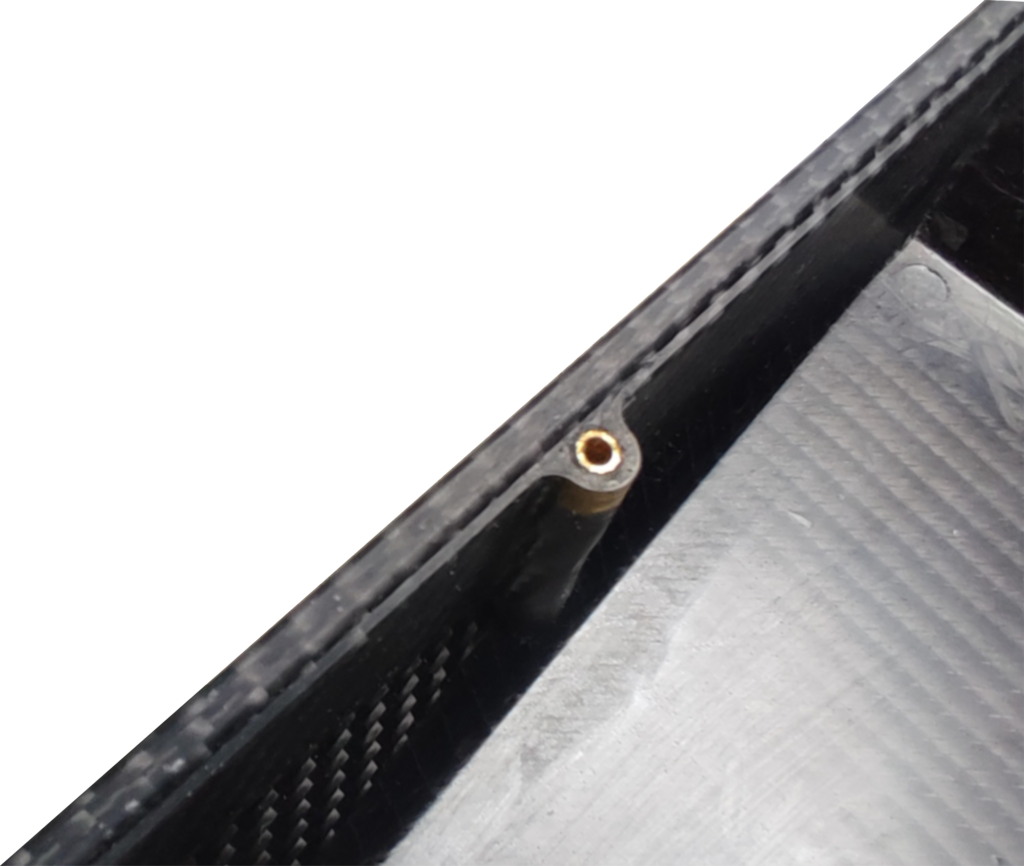

Decorative CFRP instrument casing

The technology is designed in such a way that the part does not require trimming and threaded inserts are embedded in a single step.

• Technology design
• Tooling design
• Serial production (800+ pcs)

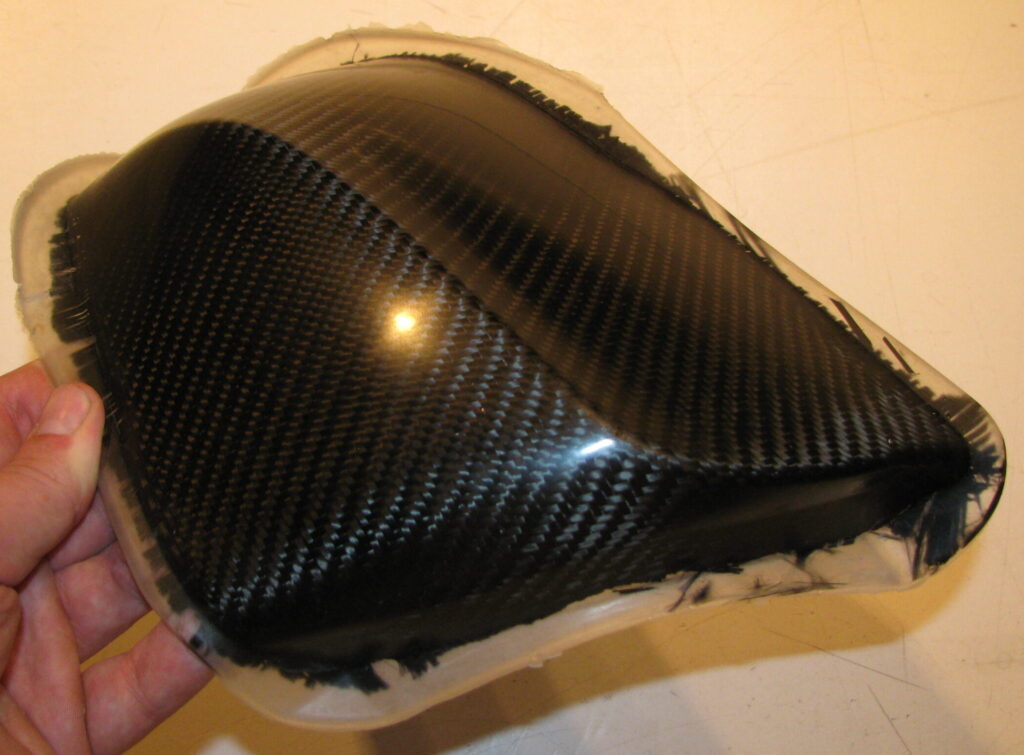

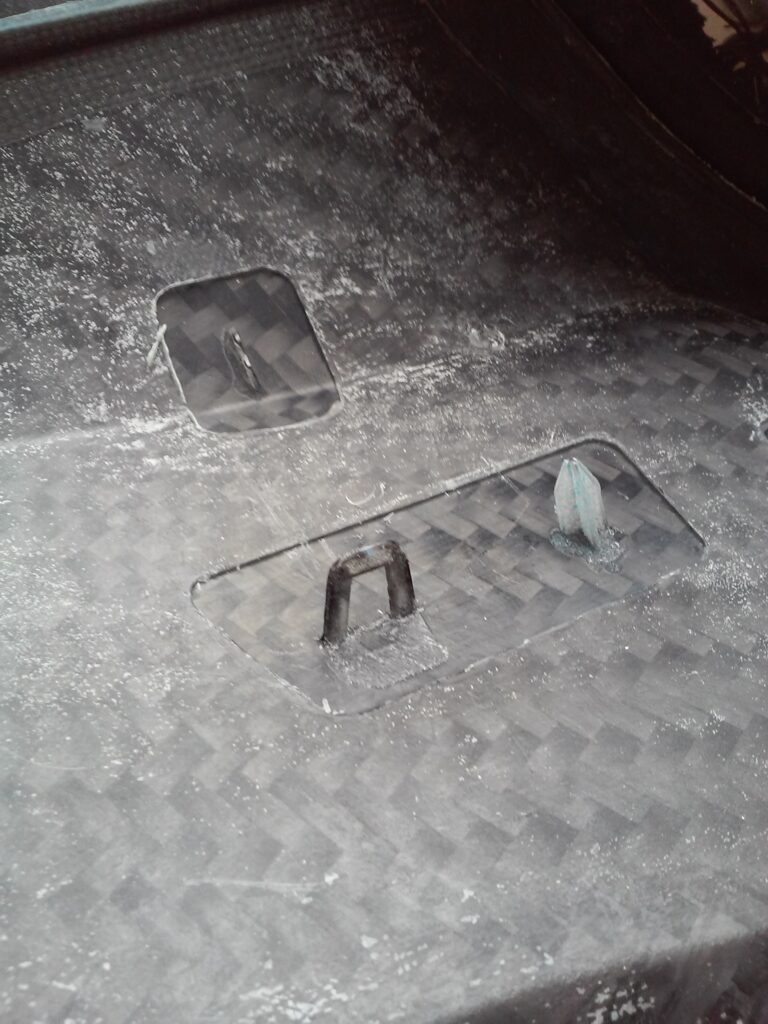

Automotive parts

Experimental project, with the intent of demonstrating technical possibilities. fastening features and inside undercut flanges are implemented in a single step.

• Technology design
• Tooling design
• Prototyping

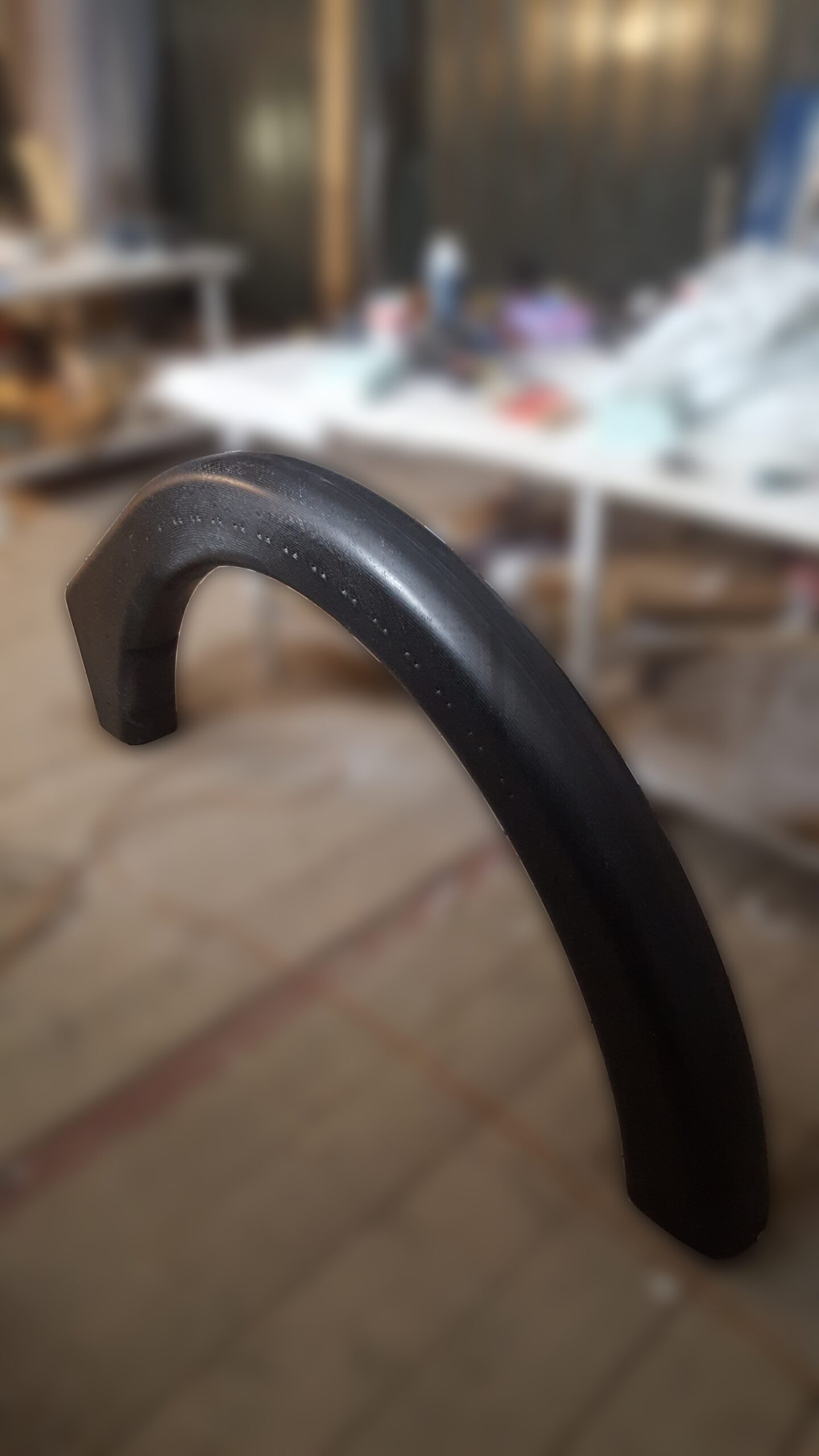

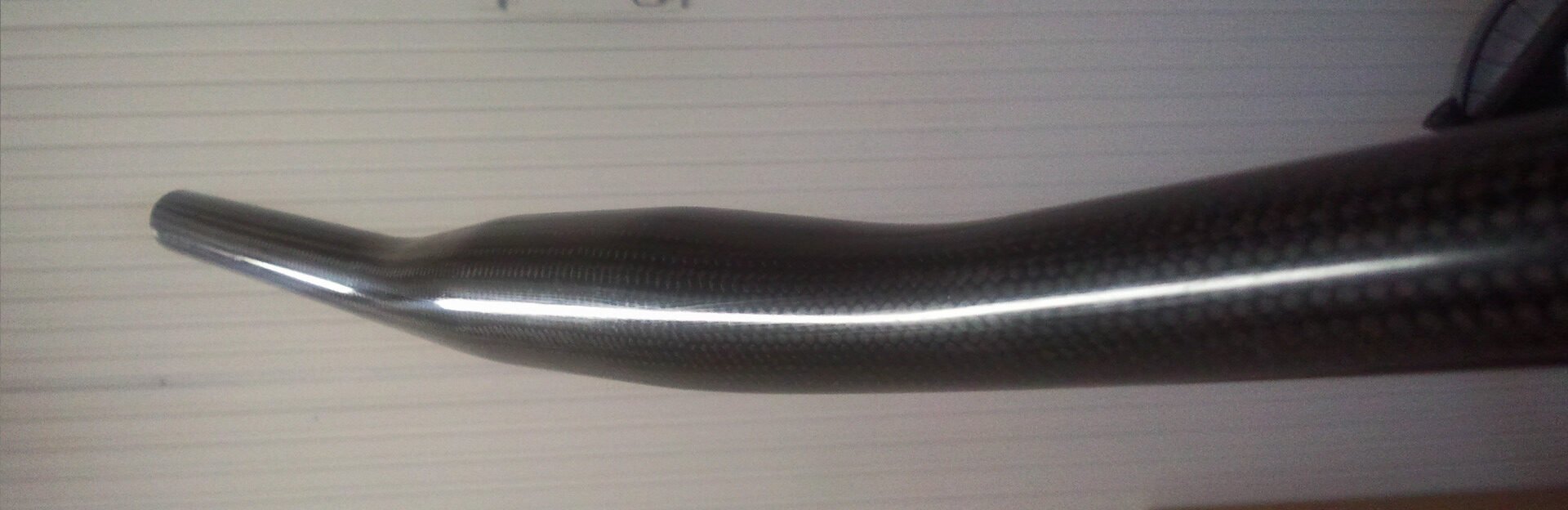

Bicycle handlebar

Special feature of this part is that uses a combination of bladder moulding and RTM processes.

• Technology design
• Tooling design
• Tooling production
• Serial production

Vacuum infusion parts

Examples of various vacuumed parts produced by our company

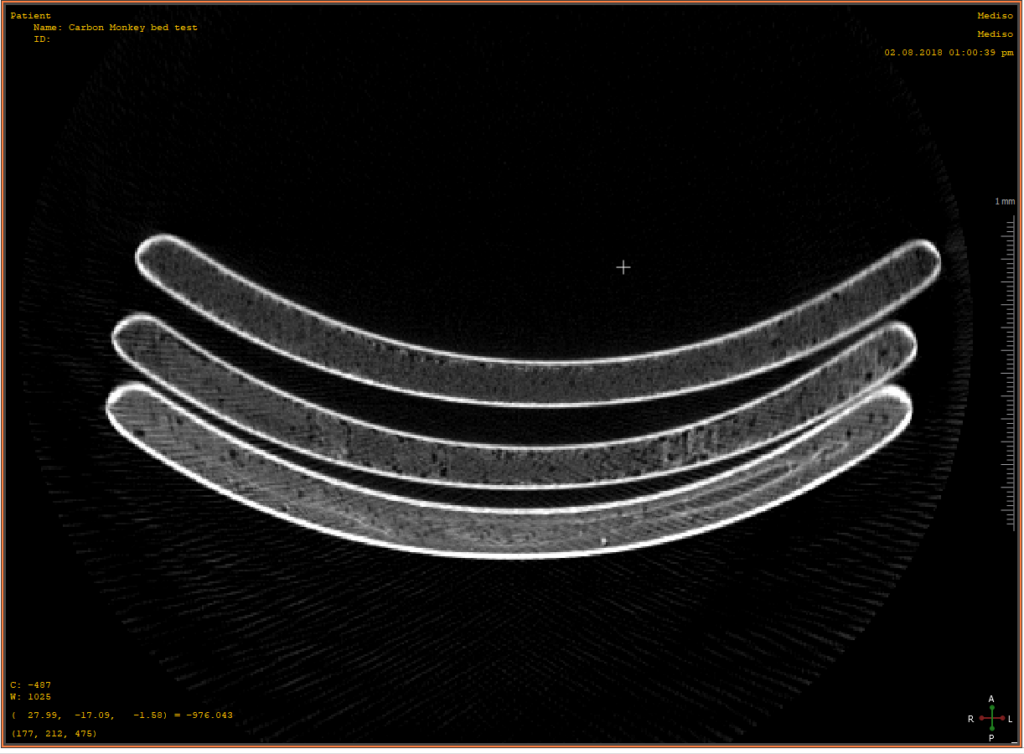

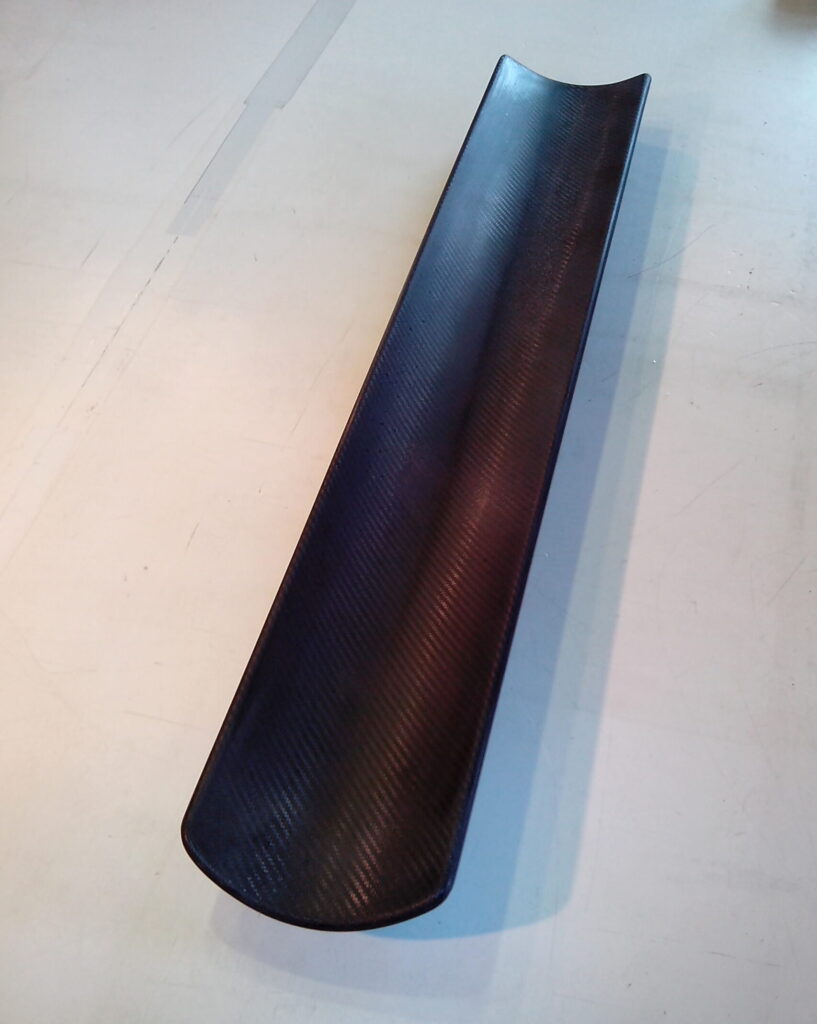

CFRP examination table

Load bearing, aesthetical examination tables for medical imaging devices produced using vacuum injection and foaming.

• Technology design
• Tooling design
• Tooling production
• Serial production

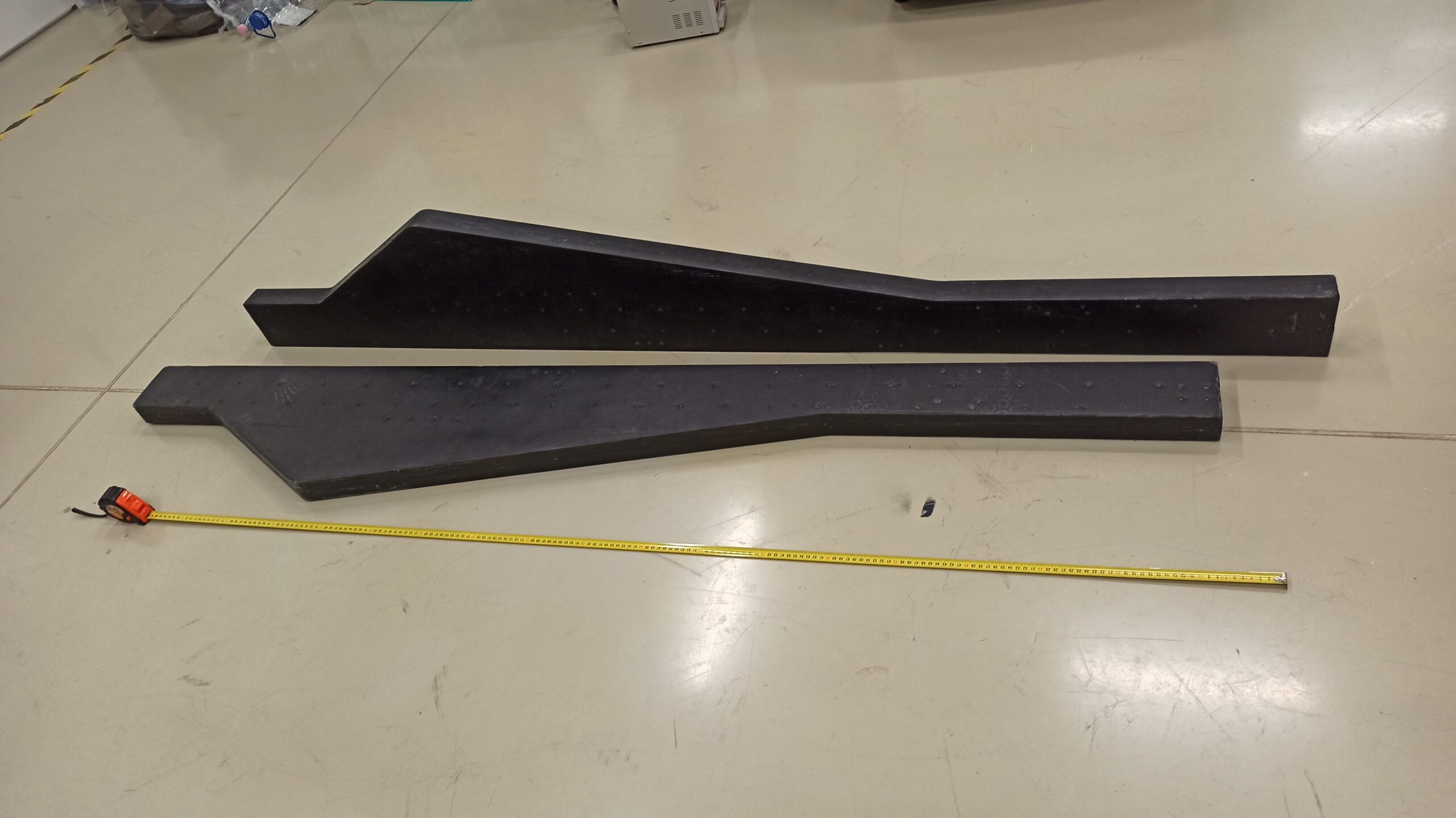

Machine parts

Relatively large (~ about 2m) load bearing elements for medical applications, tipically produced with vacuum infusion

• Technology design
• Tooling design
• Tooling production
• Prototyping

Press moulded parts

Példák cégünk által, készített préseléssel gyártott alkatrészekre

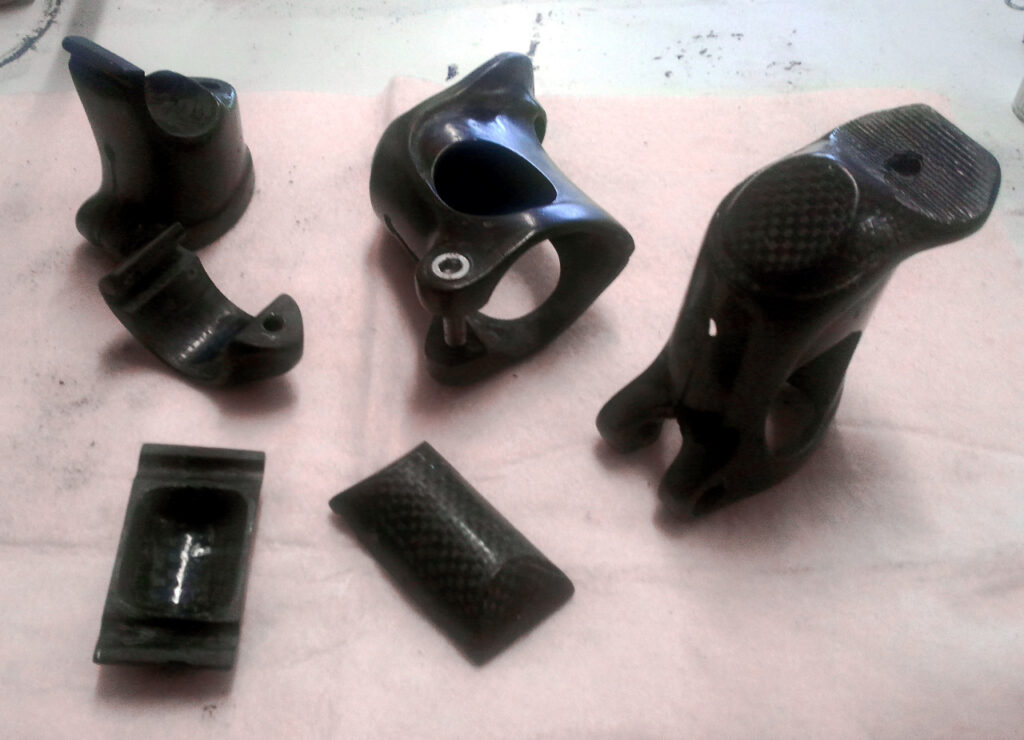

Bicycle parts

These are good examples of the process recently known as carbon fiber "forging". These components can contain both fabric and short fibers, depending on the application.

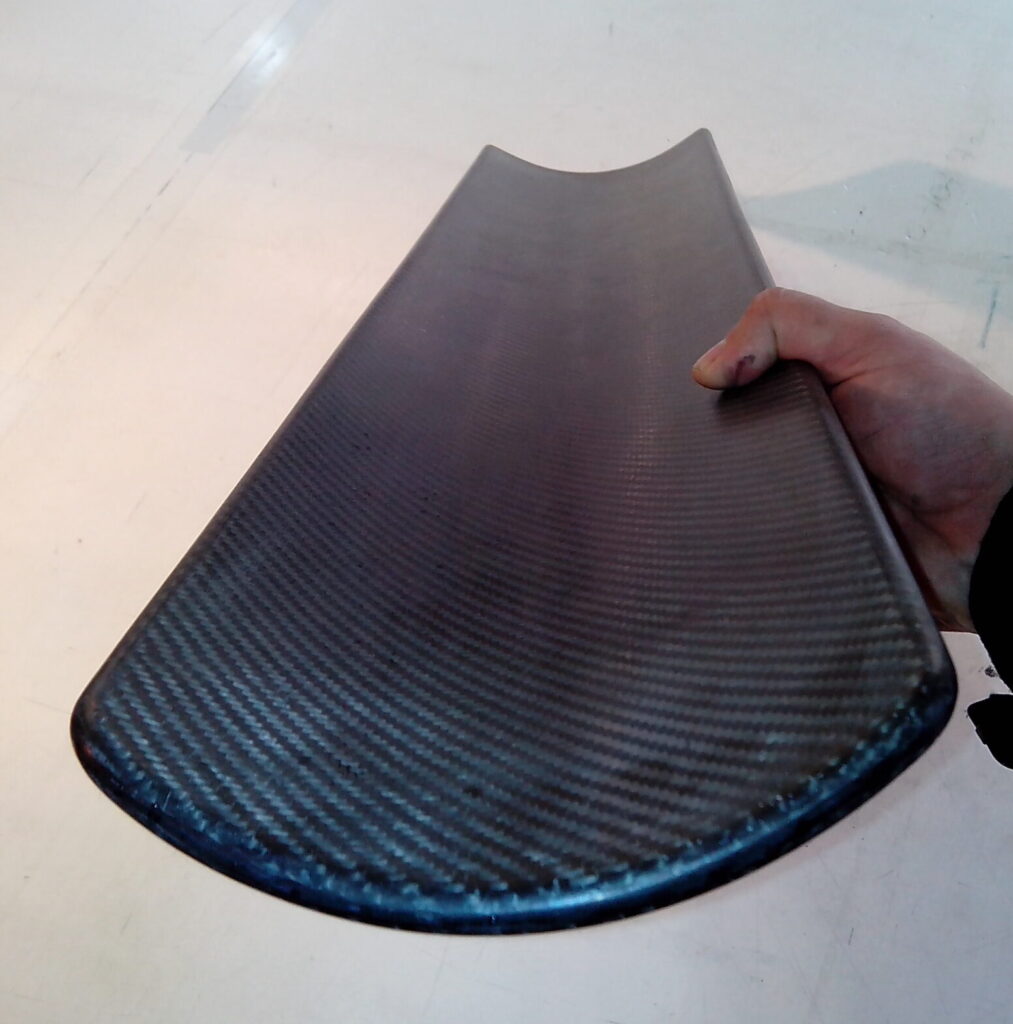

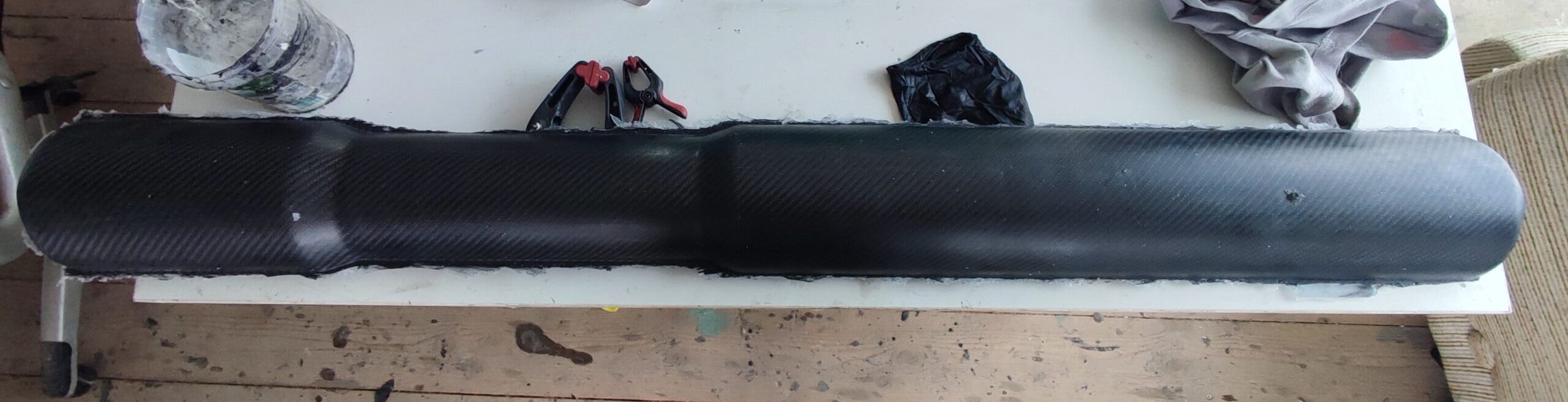

CFRP examination table

Relatively large pressed part for medical imaging devices. The image depicts the raw part straight from the mould.

• Technology design
• Tooling design
• Tooling production
• Serial production

Autoclaved prepreg products

Examples of parts produced using our in-house autoclave.

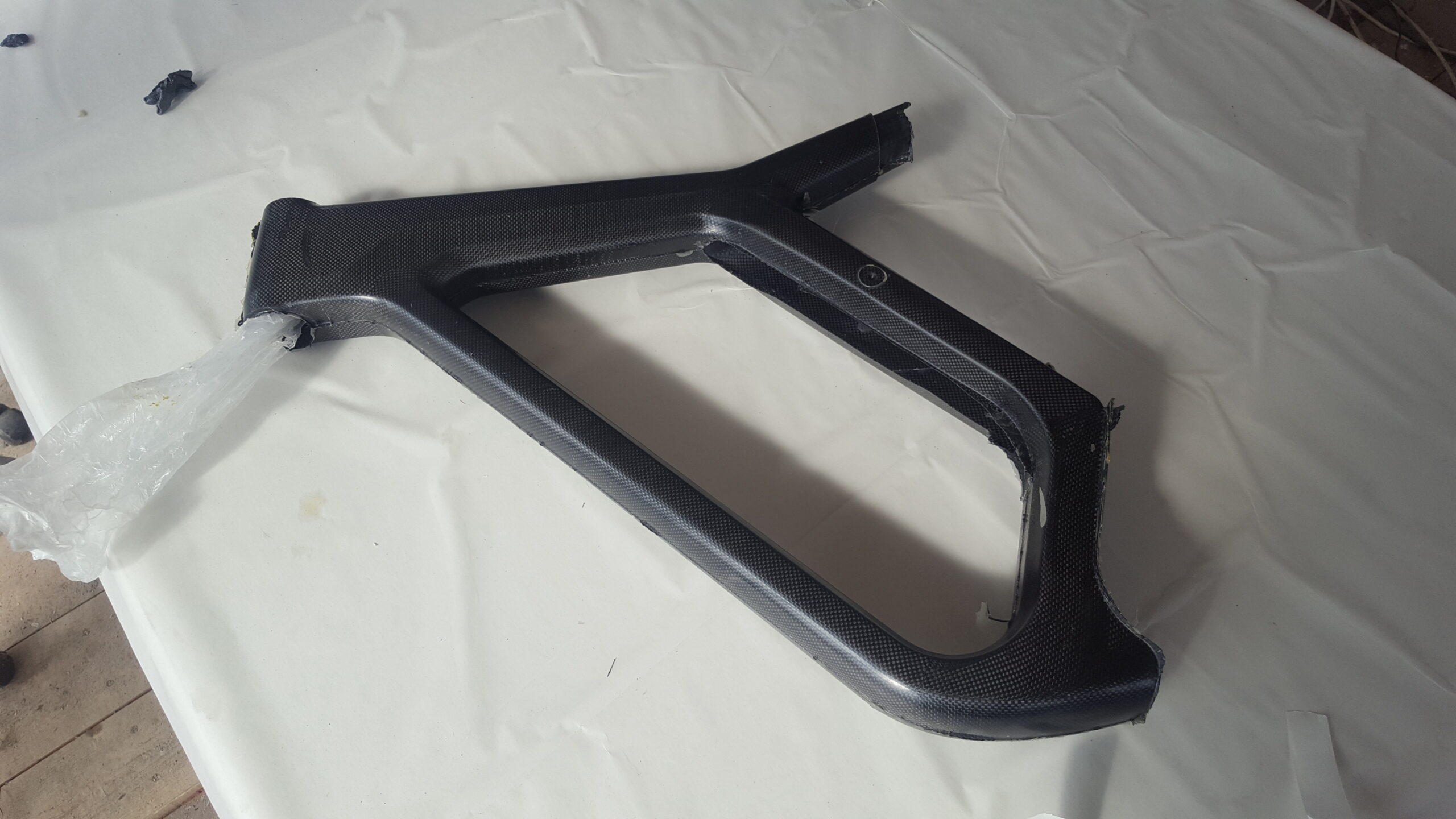

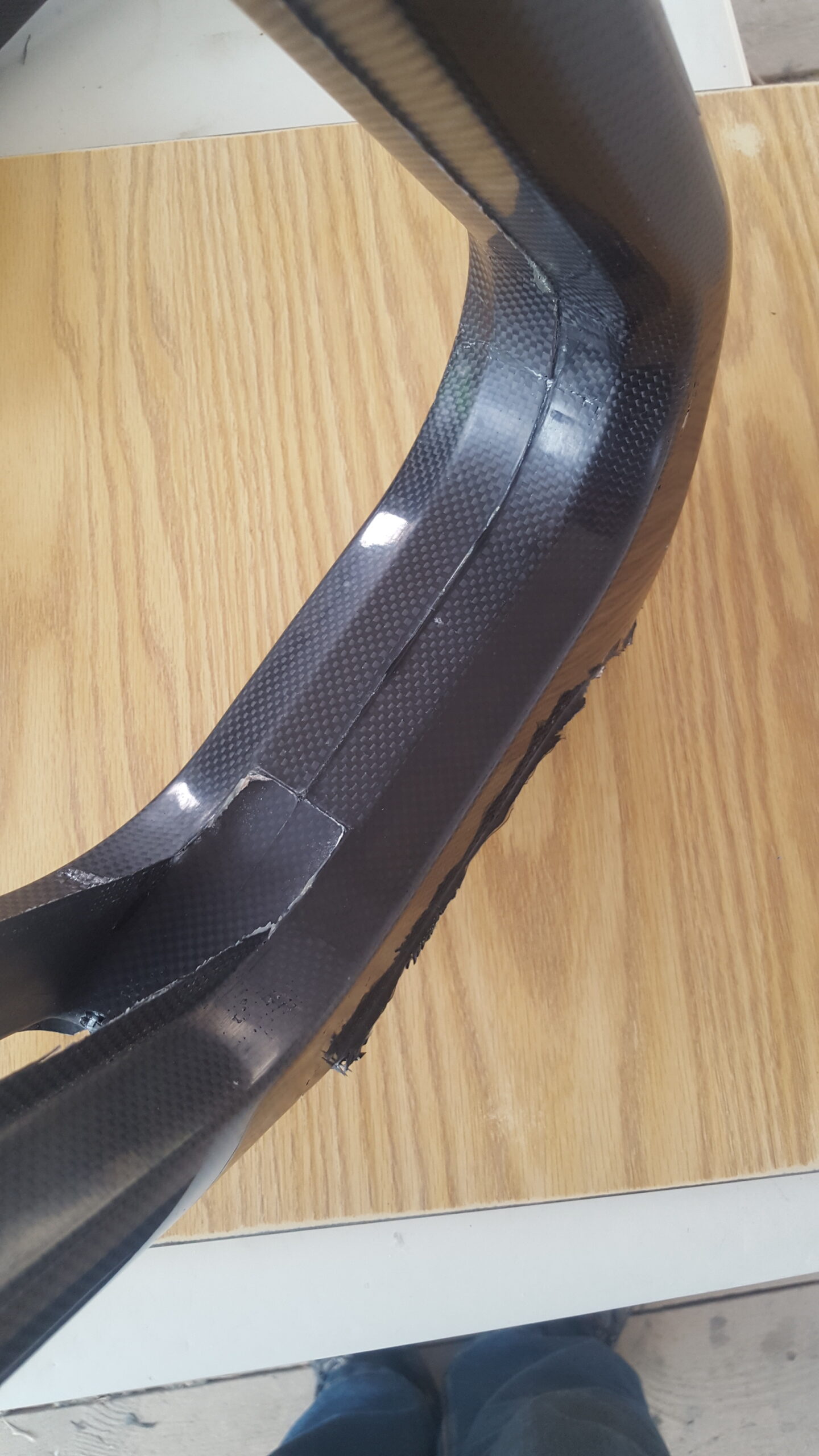

CFRP E-moto frame

Carbon fiber prepreg part for an electric motorbike. Images show the raw part straight from the mould before deburring.

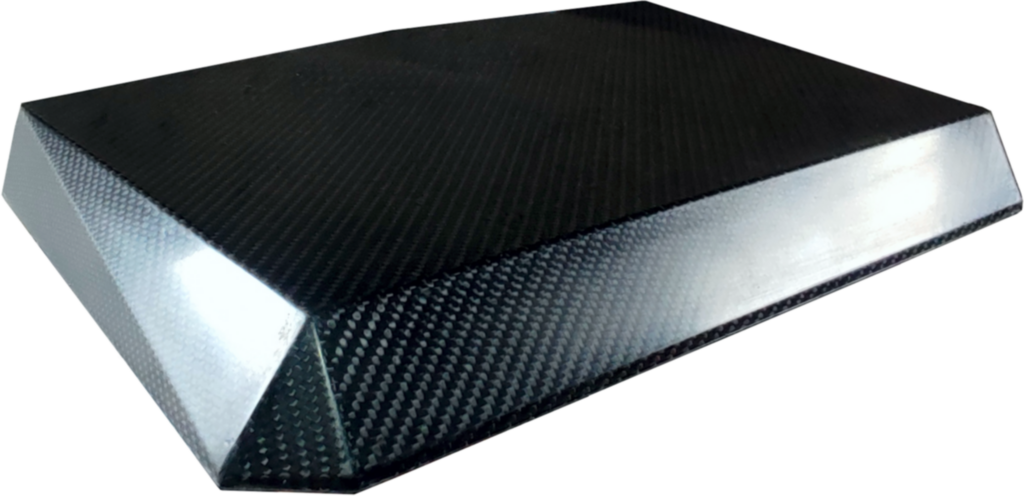

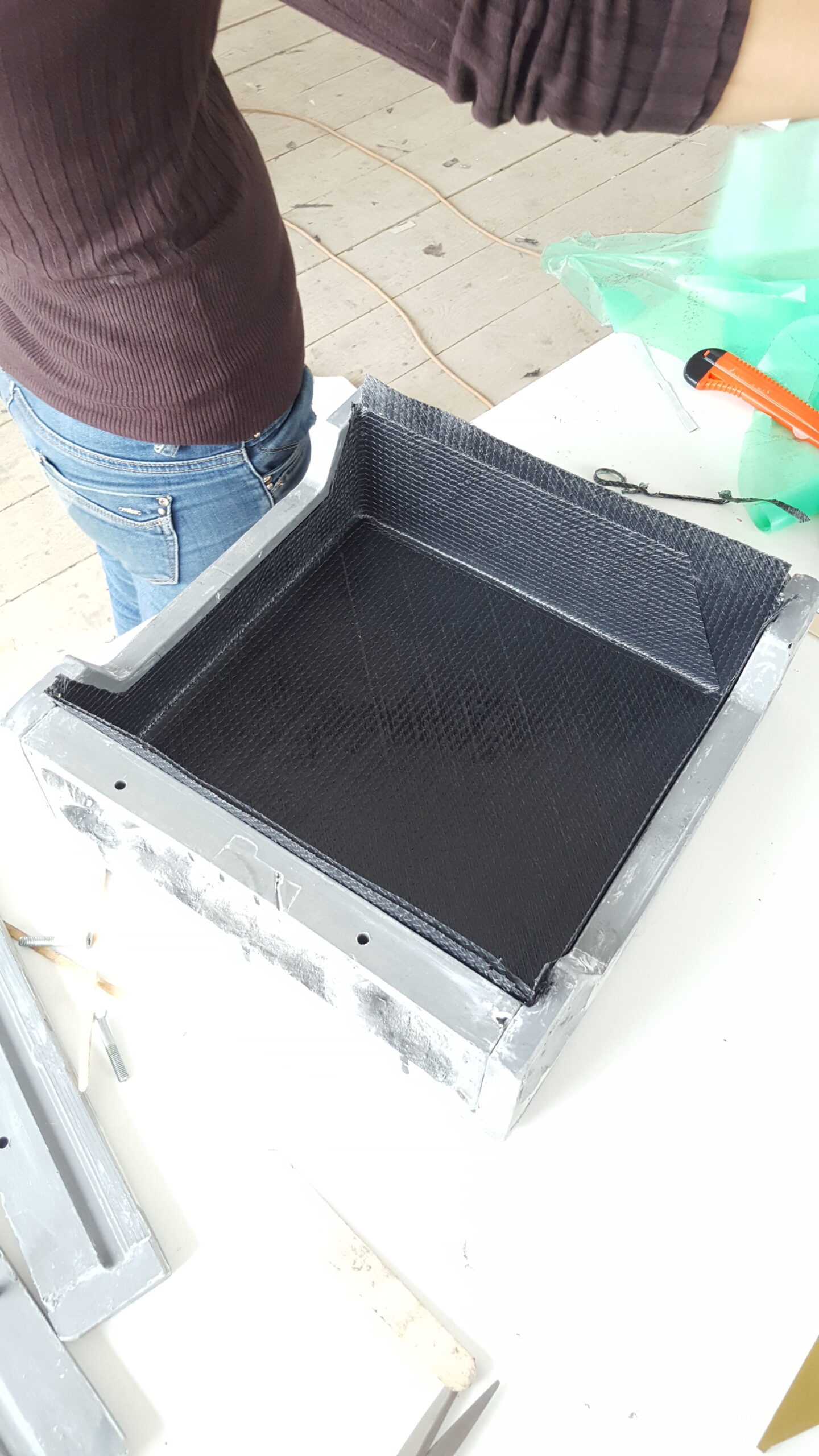

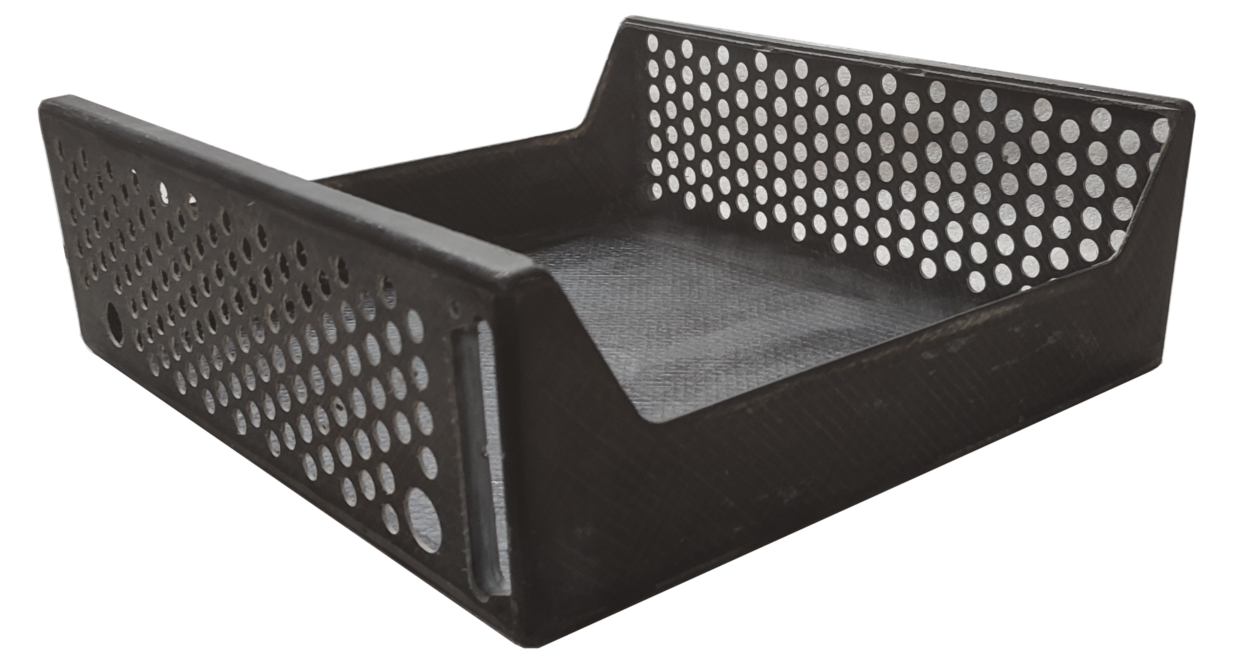

Fireproof instrument boxes

Instrument casings produced using high-strength, fire retardant glass fiber prepreg.

• Technology design
• Tooling design
• Tooling production
• Serial production

Carbon fiber frame for Stringbike

Carbon fiber frames produced in small series for the StringBike^TM system, with promotional intent. The bike sucsessfully participated in the Race Across America event (~5000 km in less than 2 weeks). Our responsibilities:

• Shape design, surface modeling
• Engineering design
• Technology design
• Tooling design
• Manufacturing of prototypes (mainly bladder moulding)

RAAM - In Utah (Race Across America)

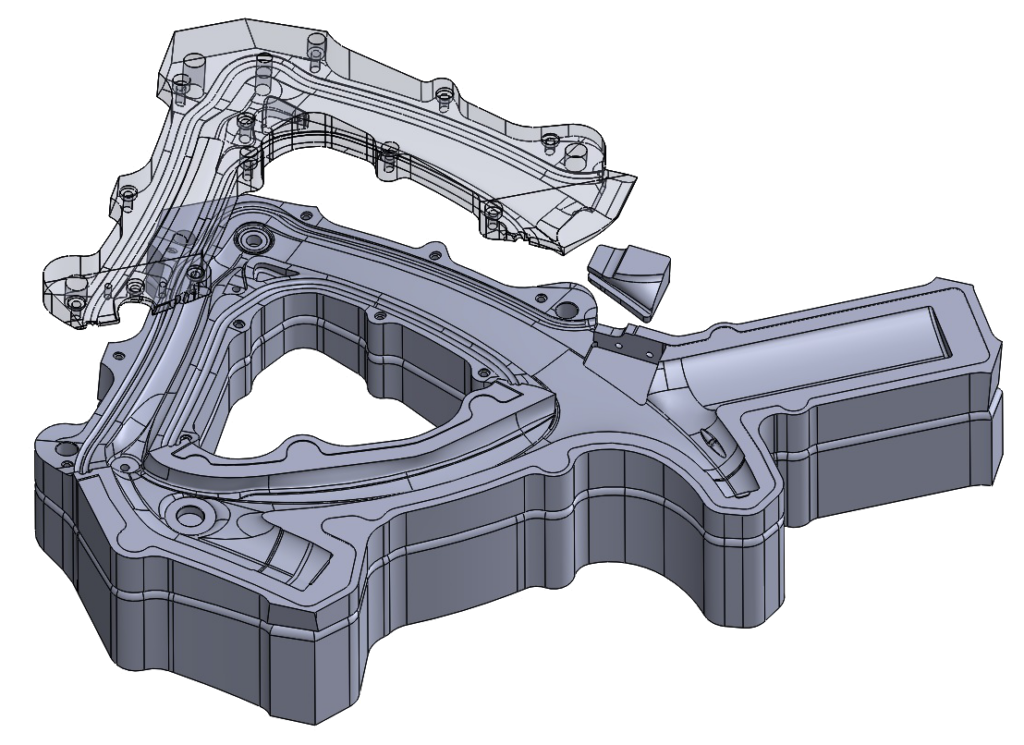

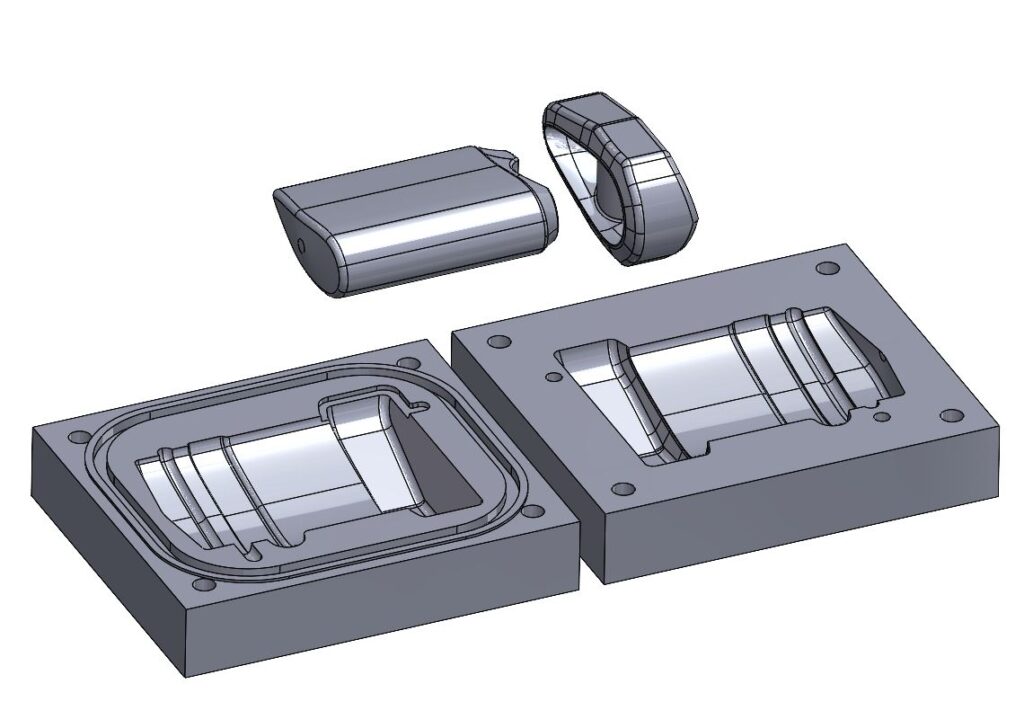

CAD tooling design

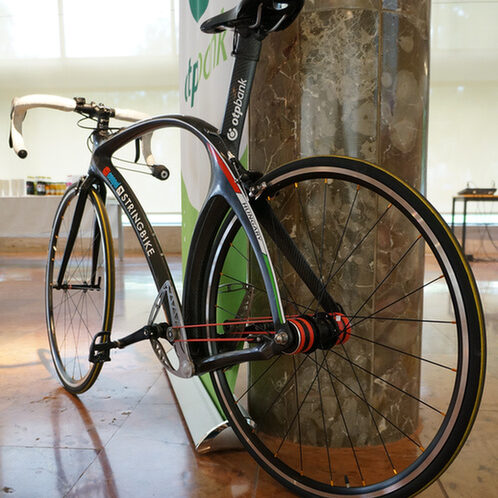

One of the finished bikes

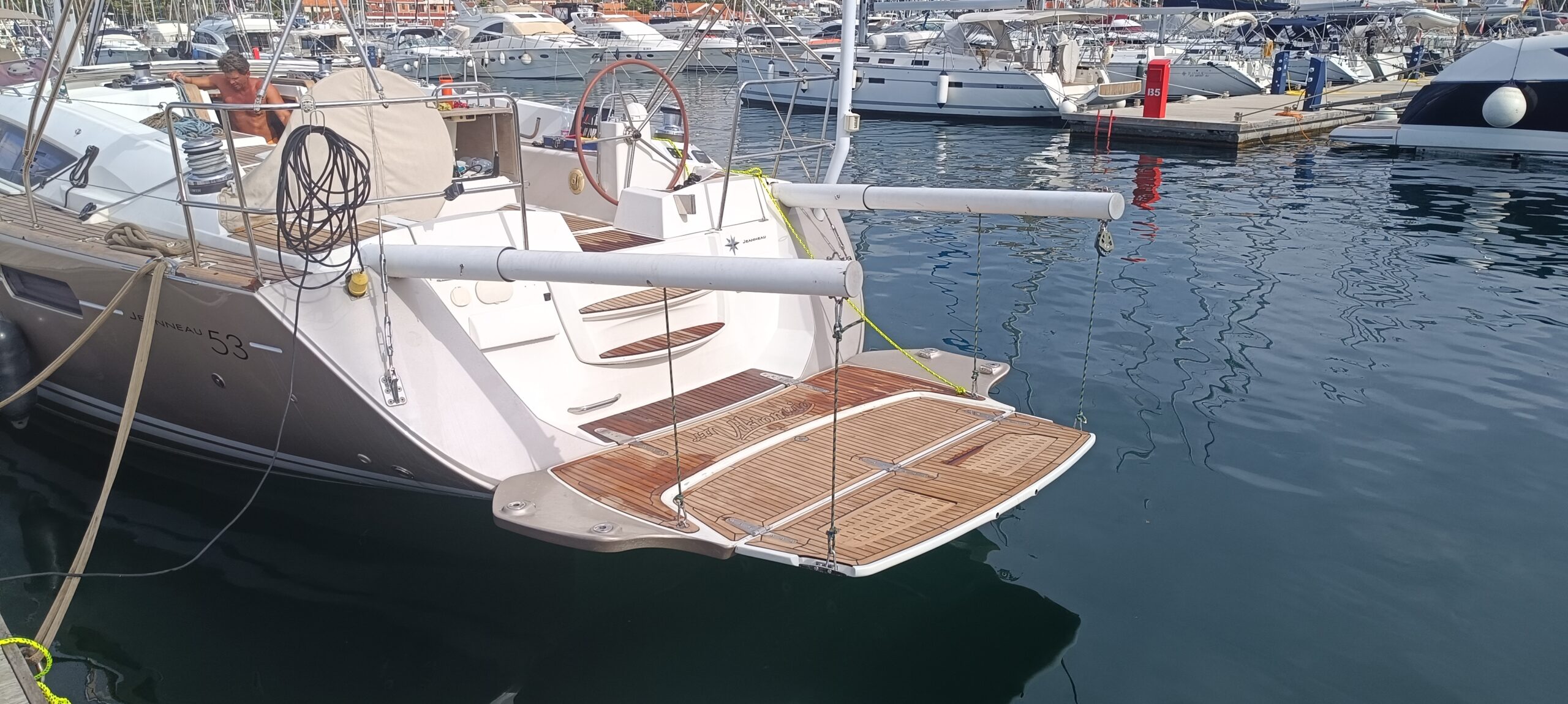

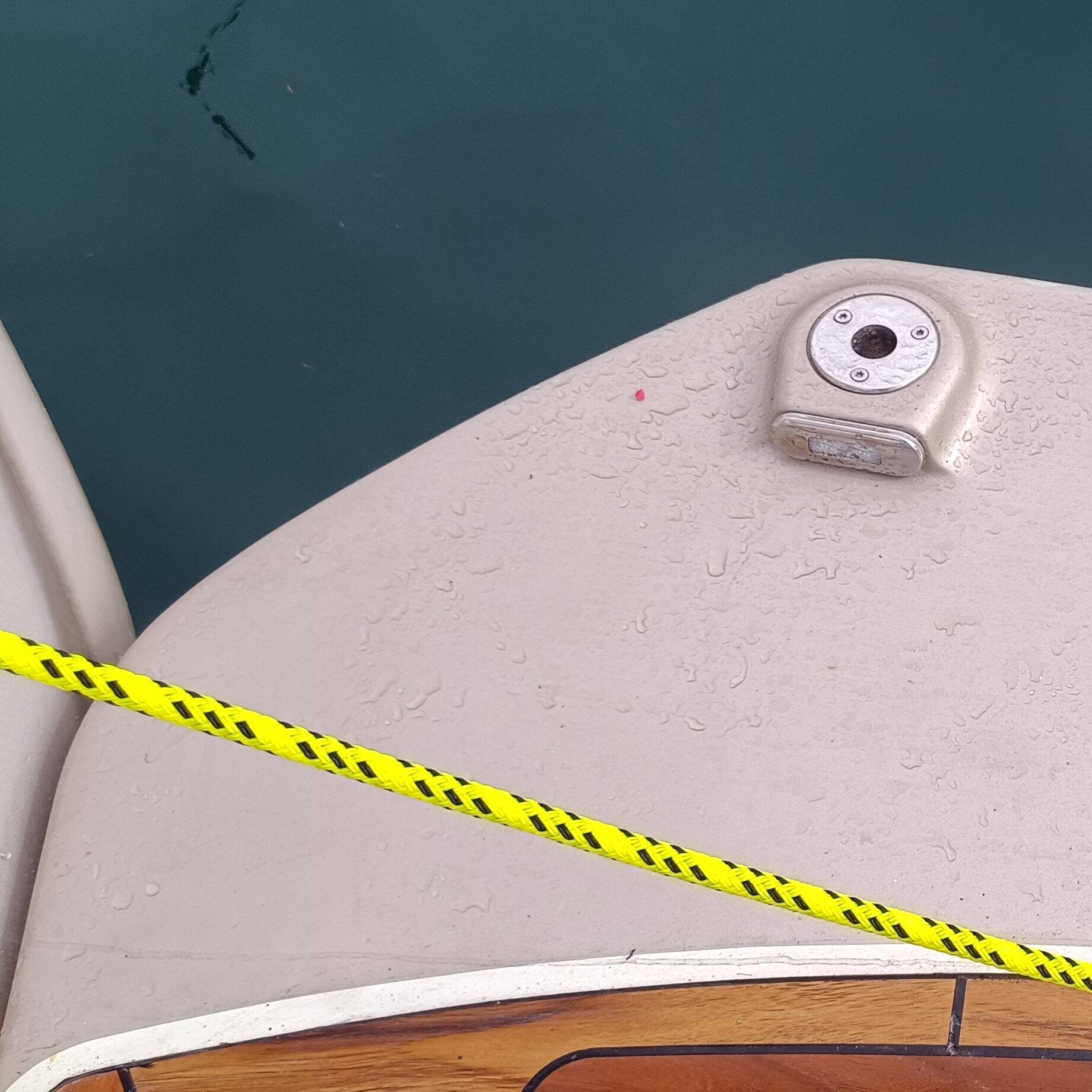

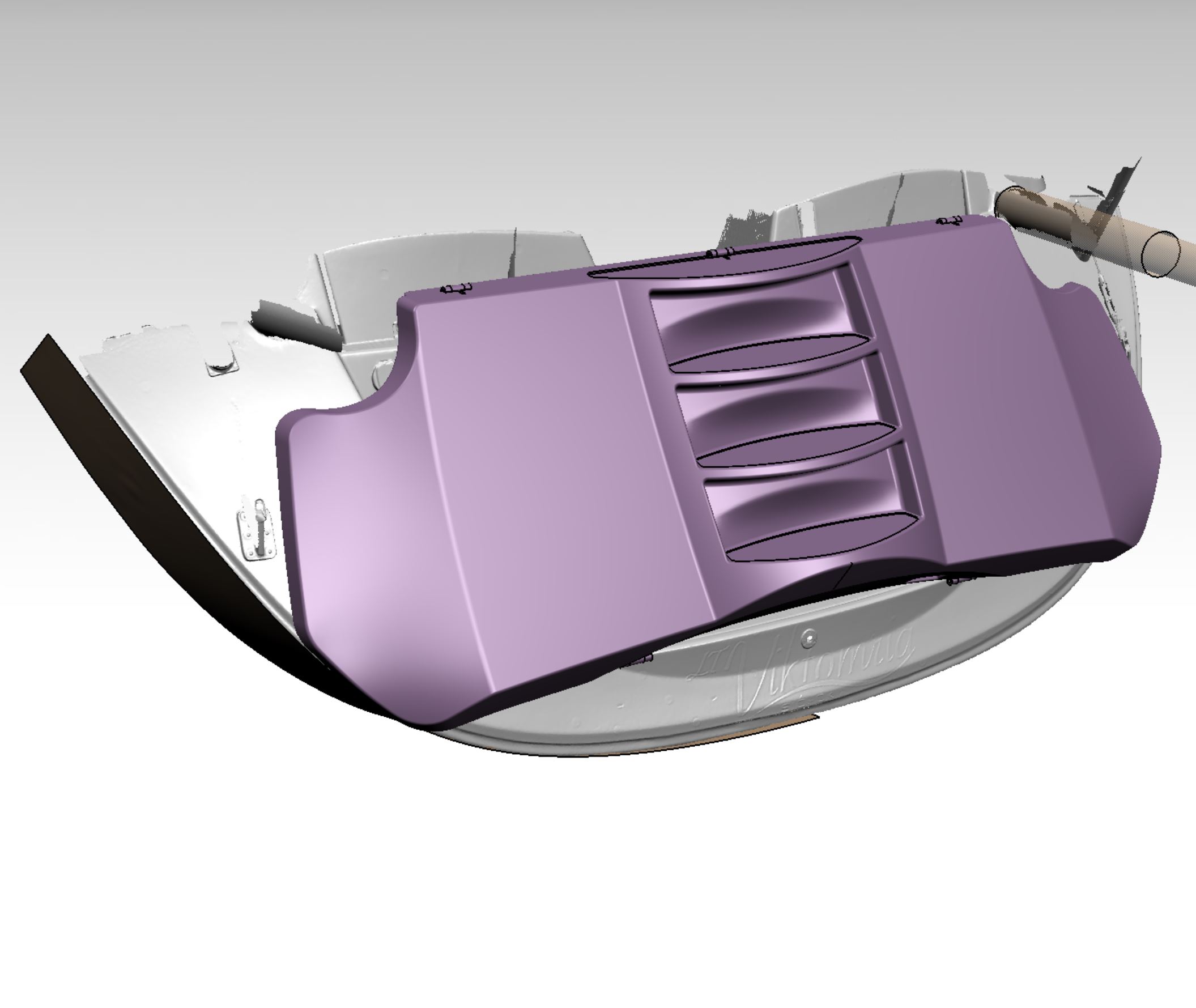

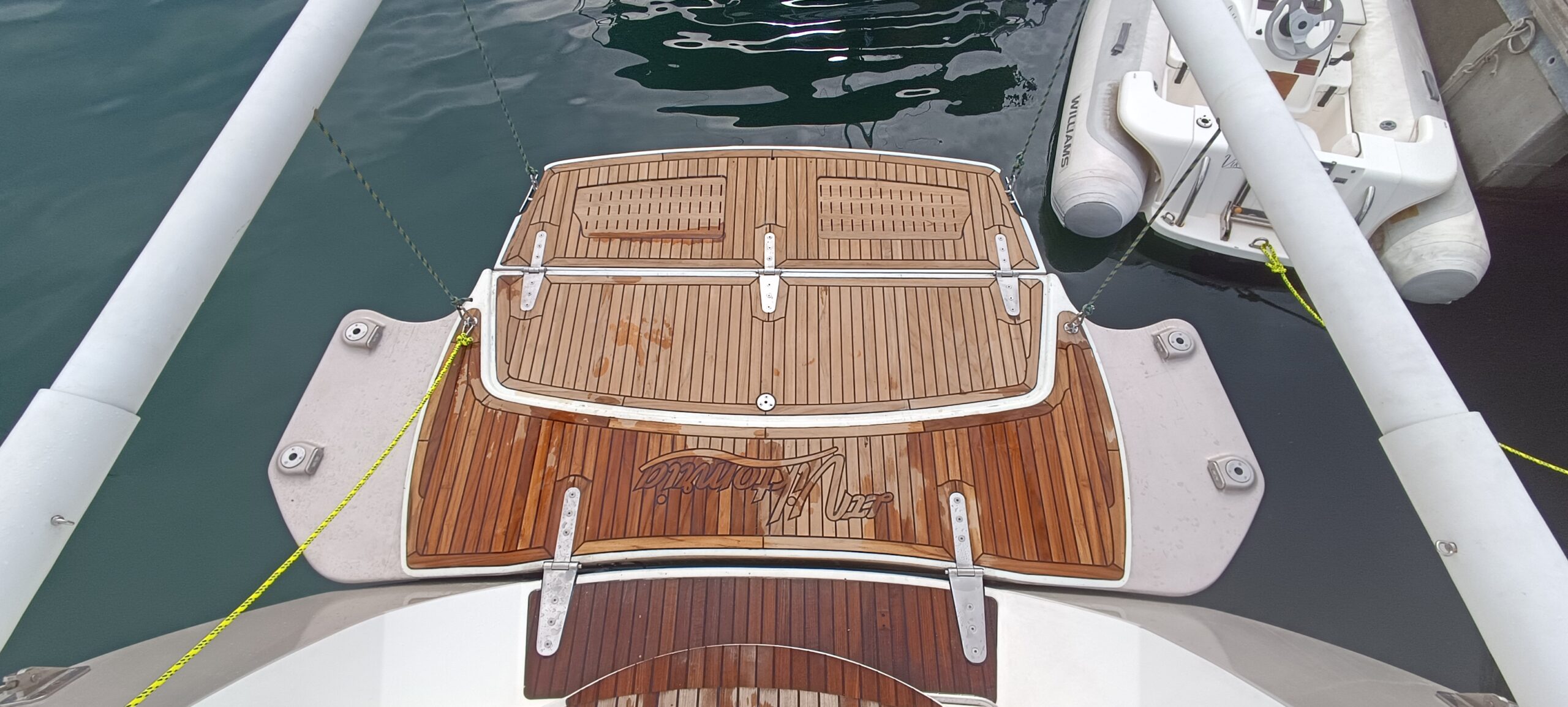

Carbon fiber bathing platform

Custom-made bathing platform with a usable area of ​​~3 m2. The piece is completely unique, perfectly fitting the shape of the yacht. The platform can be folded down in two stages, as required. Built-in stairs, sunbed attachment points, lighting and bathing ladder have also been installed.

• 3D scanning
• Shape design, surface modeling
• Engineering design
• Technology design
• Tooling design
• Complete implementation
